LABEL PRODUCTION SYSTEMS

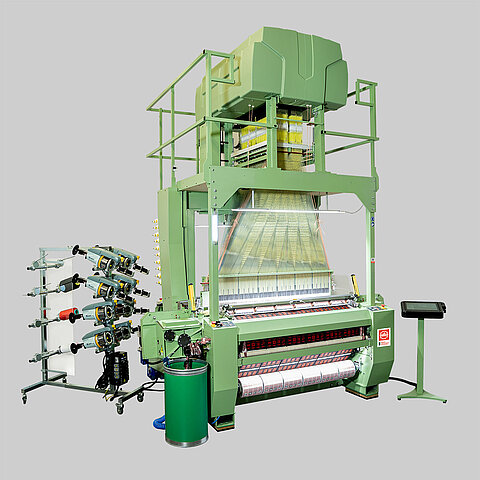

MÜGRIP® MBJ8v
SPE3M 1536 / SPE3M 3072
For the production of woven labels, in combination with photo-like designs, fashionable ribbons, name tapes and lanyards with slit selvedges.
- The world’s best label weaving machine for the production of woven labels in different variations with the integration of picture-like designs
- For outstanding fabric quality with low energy consumption
- Simple, intuitive machine operation
- Network interface for the protection of intellectual property (patterns) and implementation of the 4.0 industry strategy
- A single machine control panel for monitoring and controlling the entire weaving machine process
- Intelligent machine lighting facilitates fast repair of warp and weft breaks
- Outstanding, low-wear weft insertion system
- Storage of machine parameters together with the pattern file
- In-house development and production. Many parts of the previous models MBJ6, MBJ6.1, MBJ8 can be used for MBJ8v
- Low energy consumption - abt. 30% less compared to conventional rapier weaving machines
- Simple machine programming, high flexibility, short change-over times
- Higher productivity compared to the previous generation
- Optimum accessibility and usability
- Network ready, connectable to mymuenet®, the production data acquisition system with direct access to the machine control
| Reed width (max.) [mm] | 1380 | ||
| Working width (max.) [mm] | 1346 | ||
| Shedding motion | SPE3M series up to 3072 control functions | ||
| Harness-type | Taffeta | Semi-Satin | Satin |
| Harness-variations [mm] | 3x422T, 4x316T, 6x211T/S, 10x130SS, 12x105S and many other variations for ON-LOOM (hot slitting) or OFF-LOOM (ultrasonic slitting) or in combination (hot-/ ultrasonic slitting) | ||
| Weft insertion | Rapier system | ||
| Number of weft colours | 4-12 (individually adjustable speed, remapping and interchange function) | ||
| Pattern programming | MÜCAD pattern and programming system | ||
| Production data acquisition system | mymuenet® | ||
Many options from the MBJ8v platform available.
