LABEL PRODUCTION SYSTEMS

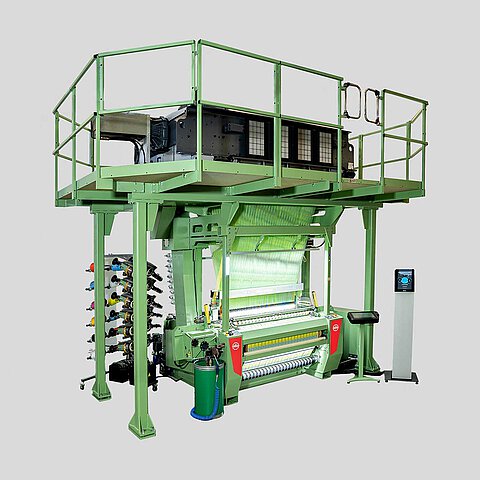

MÜGRIP® MBJ8.1 LXL PRO 8192

For labels with individual codes, individual numbering and photo-like posters.

MÜGRIP® MBJ8.1 with a one group taffeta harness; ideally suited for the production of labels with individual codes, individual numbering and photo-like posters for highest quality demands.

  • For outstanding fabric quality with low energy consumption
  • Simple, intuitive machine operation
  • Network interface for the protection of intellectual property (patterns) and implementation of the 4.0 industry strategy
  • Intelligent machine lighting facilitates fast repair of warp and weft breaks
  • Improved operational reliability
  • Outstanding, low-wear weft insertion system
  • Storage of machine parameters together with the pattern file
  • Woven labels with individual codes, individual numbering and photo-like posters
  • MÜCAD design software license for programming patterns with individual codes, individual numbering, photo-like posters
  • mymuenet® for digitising the weaving room with direct access to the machine control system to optimise production efficiency
  • mymueller® – your online service portal
  • Simple machine programming, high flexibility, short change-over times
  • Optimum accessibility and usability
  • Intuitive machine operation
  • Network ready connectable to mymuenet®, the production data acquisition system with direct access to the machine control
Reed width (max.) [mm] 1380
Working width (max.) [mm] 1346
Shedding motion LXL PRO 8192
Harness-type Taffeta
Harness-variations [mm] 1 x 1266T
Weft insertion Rapier system
Number of weft colours 4-12
Pattern programming MÜCAD pattern and programming system
Production data acquisition system mymuenet®



All options from the MBJ8.1 platform available.
